GMSL2 Interface

ECM300G2F

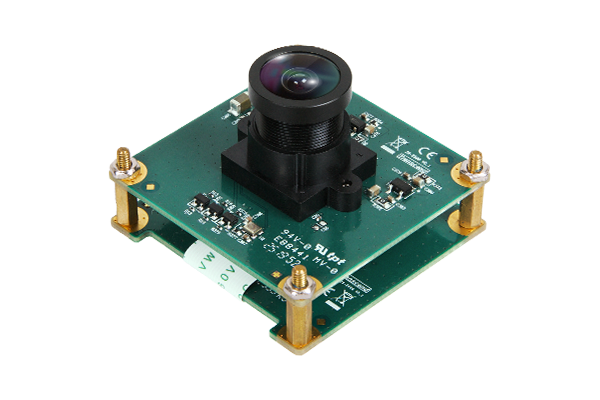

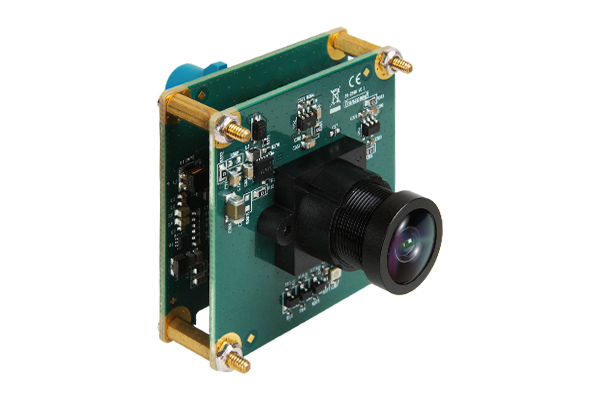

Transcend's industrial embedded camera module ECM300G2F features a Sony high-sensitivity CMOS sensor with advanced STARVIS™ 2 imaging technology, delivering 5MP high-resolution imaging and a 140° wide field of view. With near-infrared (NIR) enhancement, the module captures detailed, low-noise images even in low-light environments.

The ECM300G2F adopts a GMSL2 high-speed transmission interface and a Fakra industrial-grade connector, supporting up to 6Gbps bandwidth and coaxial cable transmission distances of up to 15 meters. With integrated Power over Coax (PoC), the module enables video, control, and power delivery through a single coaxial cable, significantly simplifying system cabling and enhancing overall system reliability.

Supporting real-time video output up to 60 fps and remote control via I²C, the ECM300G2F operates reliably within an industrial temperature range of -30°C to 70°C, suited for applications such as autonomous driving systems, robotic vision, smart factories, and industrial automation equipment (AMR/AMV).


Firmware Features

  • Customize image parameters in the driver to ensure image quality meets customer requirements.
  • Provide ISP (Image Signal Processor) tools, allowing customers to fine-tune image parameters themselves and achieve optimal results in various shooting environments.

Hardware Features

  • 2K high resolution captures images with outstanding clarity and fine detail.
  • Incorporates Sony’s advanced STARVIS 2 technology, delivering exceptional low-light performance, reduced noise, and vivid color reproduction even in challenging lighting conditions.
  • An integrated HDR (High Dynamic Range) function ensures clear and well-balanced images even in scenes with extreme contrast.
  • NIR (Near-Infrared) enhancement improves sensitivity to near-infrared light, allowing the camera to deliver clear and detailed images in low-light or IR-assisted night-time conditions.
  • High sensitivity provides excellent image brightness and sharpness even in varied lighting scenarios.
  • GMSL2 high-speed video transmission interface for long-distance image output

Specifications

Appearance
Dimensions38 mm x 38 mm x 41.26 mm (1.5" x 1.5" x 1.62")

Interface
Bus Interface
  • GMSL2

Camera
CMOS Sensor
  • Sony IMX675
Active Pixel2592 (H) x 1944 (V) = 5 MP
Pixel Size2µm x 2µm
Lens Field of View140°/117°/90°
Illumination Type
  • Back Side Illumination(BSI)
ADC Resolution
  • 12-bit ADC
Optical Format1/2.8"
Shutter Type
  • Rolling Shutter
Chromaticity
  • Color
Maximum Frame RateFull size @ 60 fps

Power
Operating Voltage
  • 12V
Power Consumption (Operation)1.05 watt(s)

Operating Environment
Operating Temperature-30°C (-22°F) ~ 70°C (158°F)
Storage Temperature-40°C (-40°F) ~ 85°C (185°F)
Humidity5% ~ 95%

Warranty
Warranty
  • Three-year Limited Warranty

Order Information

0GB
  • TS-ECM300G2F
