USB Interface

ECM310U2M

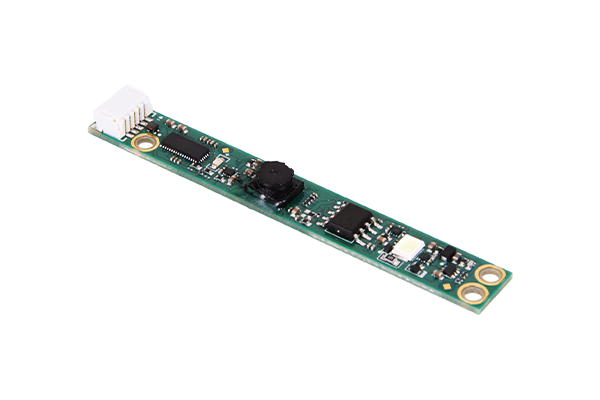

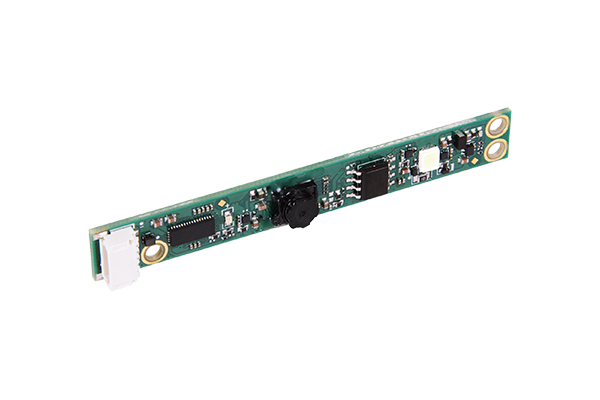

Transcend's USB Embedded Camera Module ECM310U2M features a high-resolution CMOS sensor, delivering 5MP (2592 × 1944) image quality with smooth video output of up to 60 fps, enabling more detailed and refined image capture.

The ECM310U2M adopts a USB 2.0 interface with a 5-pin connector design and supports the UVC (USB Video Class) protocol, allowing plug-and-play compatibility across most mainstream operating systems. It can be quickly integrated into a wide range of embedded platforms and edge computing devices without the need for additional driver installation.


Firmware Features

  • Customize image parameters in the driver to ensure image quality meets customer requirements.
  • A built-in ISP (Image Signal Processor) automatically optimizes image settings to deliver optimal image quality across various operating environments.

Hardware Features

  • 2K high resolution captures images with outstanding clarity and fine detail.
  • Compact and lightweight design, ideal for industrial tablets, POS systems, and gaming machines.
  • Includes a USB 5-pin cable, ensuring broad compatibility with a wide range of USB-based embedded systems.

Specifications

Appearance
Dimensions68 mm x 8 mm x 4.02 mm (2.68" x 0.31" x 0.16")

Interface
Bus Interface
  • USB 2.0
Connector5 pin

Camera
CMOS Sensor
  • Galaxycore GC05A2
Active Pixel2592 (H) x 1944 (V) = 5 MP
Pixel Size1.12µm x 1.12µm
Lens Field of View86°/73°/58°
Illumination Type
  • Back Side Illumination(BSI)
ADC Resolution
  • 10-bit ADC
Optical Format1/5"
Shutter Type
  • Rolling Shutter
Chromaticity
  • Color
Maximum Frame RateFull size @ 60 fps

Power
Operating Voltage
  • 3.3V
Power Consumption (Operation)1.1 watt(s)

Operating Environment
Operating Temperature-20°C (-4°F) ~ -70°C (167°F)
Storage Temperature-40°C (-40°F) ~ 85°C (185°F)
Humidity5% ~ 95%

Warranty
Warranty
  • Three-year Limited Warranty

Order Information

0GB
  • TS-ECM310U2M
